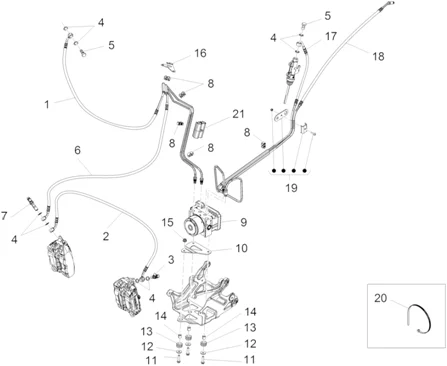

Système frein abs : 06.050 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_06.050.PNG)
1 |
2B001144 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
1 |
B045948 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
B046052 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
3 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
AP8113004 - RONDELLE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
6 |
B045949 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
6 |
2B001145 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
7 |
899811 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.JPG)
8 |
AP9100519 - MOLLETTA FISS.CAVO More informationQuantity required : 4 |
||||||
|
9 |
2D000193 - CENTRALE More informationQuantity required : 1 |
||||||
|
10 |
859789 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
11 |
AP8152280 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
AP8150015 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
13 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/9/img/56989.jpg)
14 |
AP8221007 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
16 |
2B001461 - SUPPORT More informationQuantity required : 1 |
||||||
|
16 |
B046000 - SUPPORT More informationQuantity required : 1 |
||||||
|
17 |
B045950 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
17 |
2B001142 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
18 |
2B001143 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
18 |
B045951 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
19 |
860484 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
20 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 1 |
||||||
|
21 |
2B000550 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
21 |
2B001285 - PASSE-CABLE More informationQuantity required : 1 |
