Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

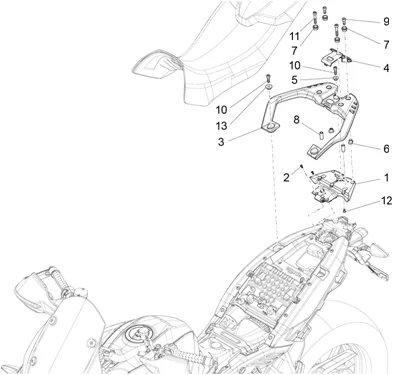

Carrosserie : 02.160 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_02.160.PNG)
1 |
B044852 - TRANSPORTEUR DE BASE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
|
3 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1200 CAPONORD 2014> -B044853- More informationQuantity required : 1 |
||||||
|
4 |
B044854 - COUV. PORTE-BAG. More informationQuantity required : 1 |
||||||
|
5 |
2B000102 - DOUILLE More informationQuantity required : 1 |
||||||
|
6 |
B045761 - DOUILLE More informationQuantity required : 2 |
||||||
|
7 |
B045762 - DOUILLE More informationQuantity required : 4 |
||||||
|
8 |
B045763 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/8/0/img/73580.jpg)
9 |
GU98692420 - VIS More informationQuantity required : 2 |
||||||
|
10 |
AP8150520 - VITE TCEI M8X25 More informationQuantity required : 3 |
||||||
|
11 |
GU98690445 - VIS M8X45 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
12 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/8/img/71468.jpg)
13 |
AP8121510 - DOUILLE More informationQuantity required : 2 |
