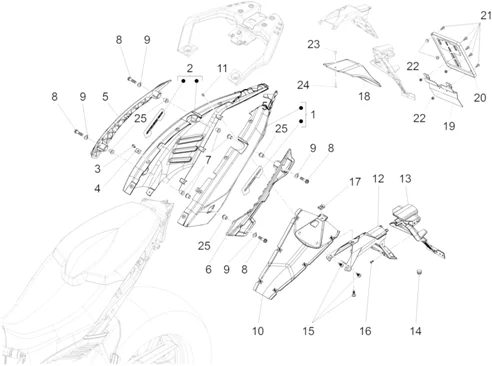

Carrosserie : 02.140 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_02.140.PNG)
1 |
2H000125000XRC - QUEUE G, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
2H000104000YE5 - QUEUE G More informationQuantity required : 1 |
||||||
|
1 |
2H000062000BM - TUYAU ECHAP. AV. More informationQuantity required : 1 |
||||||
|
1 |
2H000474000XN2 - TUYAU ECHAP. AV. More informationQuantity required : 1 |
||||||
|
2 |
2H000473000XN2 - QUEUE D More informationQuantity required : 1 |
||||||
|
2 |
2H000061000BM - QUEUE D More informationQuantity required : 1 |
||||||
|
2 |
2H000103000YE5 - QUEUE D More informationQuantity required : 1 |
||||||
|
2 |
2H000124000XRC - QUEUE D, ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
4 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 6 |
||||||
|
5 |
B044849 - FIXATION DROITE More informationQuantity required : 1 |
||||||
|
6 |
B044850 - SUPPORT More informationQuantity required : 1 |
||||||
|
7 |
AP8125882 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
|
8 |
AP8152187 - VIS TCEI M 8 X 30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.JPG)
9 |
AP8150502 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
B04485100BM - FERMETURE PORTE-SELLE More informationQuantity required : 2 |
||||||
|
10 |
B04485100XRC - COUVERCLE More informationQuantity required : 1 |
||||||
|
10 |
B04485100YE5 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
11 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 6 |
||||||
|
12 |
REAR MUDGUARD "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD -858840- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/6/img/40606.jpg)
13 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD -858842- More informationQuantity required : 1 |
||||||
|
14 |
894657 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
15 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 3 |
||||||
|
16 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
|
18 |
895487 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
19 |
895488 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
895914 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
21 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
22 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
23 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
24 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 1 |
||||||
|
25 |
2B000291 - DOUILLE EN "T" More informationQuantity required : 4 |
