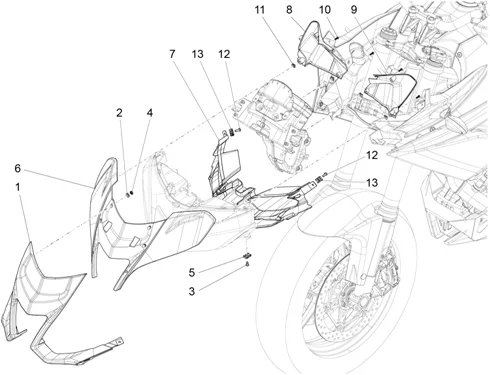

Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015 APRILIA

Carrosserie : 02.040 AVANT CARÈNE
Avant carène
Search
B0448240000XN2 - AVANT CARENAGE

1
P2R reference P2R reference 62404
Maker reference Maker reference B0448240000XN2

B0448240000XN2 - AVANT CARENAGE

More information

Quantity required : 1
B04482400BM - AVANT CARENAGE, BLANC

1
P2R reference P2R reference 62405
Maker reference Maker reference B04482400BM

B04482400BM - AVANT CARENAGE, BLANC

More information

Quantity required : 1
B04482400XRC - AVANT CARENAGE, ROUGE

1
P2R reference P2R reference 62406
Maker reference Maker reference B04482400XRC

B04482400XRC - AVANT CARENAGE, ROUGE

More information

Quantity required : 1
B04482400YE5 - AVANT CARENAGE, GRIS M

1
P2R reference P2R reference 62408
Maker reference Maker reference B04482400YE5

B04482400YE5 - AVANT CARENAGE, GRIS M

More information

Quantity required : 1
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504-

2
P2R reference P2R reference 71181
Maker reference Maker reference AP8102504

RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504-

More information

Quantity required : 10
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

3
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 1
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

4
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 12
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

5
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 1
B045014 - FRONT SPOILER OF FRAME

6
P2R reference P2R reference 62449
Maker reference Maker reference B045014

B045014 - FRONT SPOILER OF FRAME

More information

Quantity required : 1
B044821 - SHIELD

7
P2R reference P2R reference 62401
Maker reference Maker reference B044821

B044821 - SHIELD

More information

Quantity required : 1
RIGHT DASHBOARD SUPPORT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B044819-

8
P2R reference P2R reference 62399
Maker reference Maker reference B044819

RIGHT DASHBOARD SUPPORT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B044819-

More information

Quantity required : 1
LEFT DASHBOARD SUPPORT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B044820-

9
P2R reference P2R reference 62400
Maker reference Maker reference B044820

LEFT DASHBOARD SUPPORT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B044820-

More information

Quantity required : 1
018536 - VIS

10
P2R reference P2R reference 65437
Maker reference Maker reference 0185365

018536 - VIS

More information

Quantity required : 6
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

11
P2R reference P2R reference 72921
Maker reference Maker reference CM017403

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

More information

Quantity required : 6
AP8152268 - VIS

12
P2R reference P2R reference 71935
Maker reference Maker reference AP8152268

AP8152268 - VIS

More information

Quantity required : 2
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

13
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 2
