Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

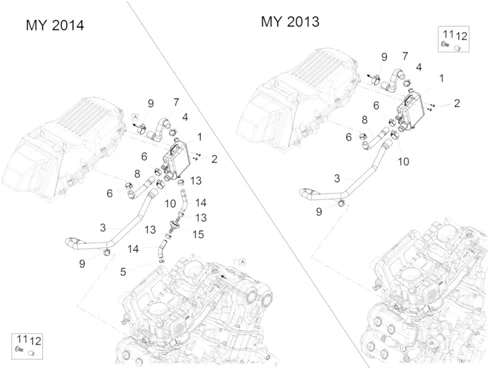

Moteur : 03.196 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_03.196.PNG)
1 |
2B000696 - PLATEAU D'HUILE More informationQuantity required : 1 |
||||||
|
1 |
2B000908 - KIT OUTILS MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
2 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
|
3 |
2B000198 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
4 |
AP8102349 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
5 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/6/img/71206.jpg)
6 |
AP8102903 - COLLIER CLIC More informationQuantity required : 2 |
||||||
|
7 |
2B000199 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
2B000200 - TUYAU RENIFLARD HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.JPG)
9 |
AP8102786 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
10 |
AP8201169 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
|
12 |
RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
13 |
AP8102239 - COLLIER CLIC More informationQuantity required : 3 |
||||||
|
14 |
AP8144015 - TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/6/img/71246.JPG)
15 |
AP8104996 - VALVOLA UNIDIREZIONALE More informationQuantity required : 1 |
