Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

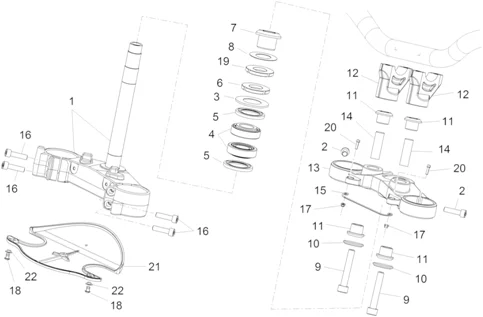

Guidon - commandes : 07.010 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_07.010.PNG)
1 |
B045254 - PLAQUE INF. More informationQuantity required : 1 |
||||||
|
2 |
AP8152187 - VIS TCEI M 8 X 30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
3 |
AP8123644 - ANNEAU PARE-POUSS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.JPG)
4 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
4 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
4 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
4 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.JPG)
5 |
AP8123641 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
|
6 |
B046343 - BAGUE More informationQuantity required : 1 |
||||||
|
7 |
B045392 - BOUCHON More informationQuantity required : 1 |
||||||
|
8 |
2B000099 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/2/img/71822.jpg)
9 |
AP8150088 - VIS GUIDON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.JPG)
10 |
AP8123721 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
AP8144222 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
12 |
854815 - CAVALIER INF. GUIDON More informationQuantity required : 2 |
||||||
|
13 |
B045255 - PLAQUE SUP. FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/5/7/img/62657.jpg)
14 |
SPACER- FOR HANDLEBAR MOUNTING "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B046057- More informationQuantity required : 2 |
||||||
|
15 |
2B000100 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
AP8150236 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
17 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
18 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.JPG)
19 |
AP8123642 - BAGUE More informationQuantity required : 1 |
||||||
|
20 |
AP8150454 - VIS More informationQuantity required : 2 |
||||||
|
21 |
2B000143 - COUVERCLE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.JPG)
22 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
