Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

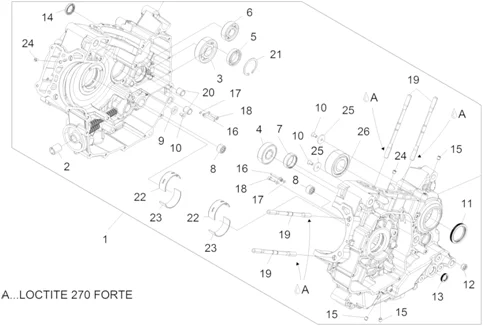

Moteur : 03.030 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_03.030.PNG)
1 |
1A0005391A - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
874598 - GRAIN DE REFERENCE More informationQuantity required : 1 |
|||||||||
|
1 |
1A0005392A - CARTER More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
2 |
OIL FILTER UNION "PIAGGIO GENUINE PART" COMMON FOR MAXISCOOTERS 400-500 CC AND MOTO-GUZZI -829122- More informationQuantity required : 1 |
|||||||||
|
2 |
877814 - VIS More informationQuantity required : 2 |
|||||||||
|
3 |
875936 - ROULEMENT A BILLES More informationQuantity required : 1 |
|||||||||
|
3 |
CM159601 - JOINT CYLINDRE/CARTE 0,4R More informationQuantity required : 1 |
|||||||||
|
3 |
CM159603 - JOINT CYLINDRE/CARTER 0,6 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/0/8/img/62808.jpg)
3 |
CYLINDER BASE GASKET- (0,5MM) "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, DORSODURO -CM159602- More informationQuantity required : 1 |
|||||||||
|
4 |
875838 - ROULEMENT A BILLES More informationQuantity required : 1 |
|||||||||
|
4 |
874548 - VIS BRIDE More informationQuantity required : 11 |
|||||||||
|
5 |
872033 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
5 |
872182 - VIS BRIDE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
6 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
|||||||||
|
6 |
848650 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
7 |
1A018647 - DRAWN CUP NEEDLE More informationQuantity required : 1 |
|||||||||
|
7 |
878434 - BAGUE More informationQuantity required : 1 |
|||||||||
|
7 |
974129 - CAGE A ROULEAUX; More informationQuantity required : 1 |
|||||||||
|
8 |
122671 - COQUILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
8 |
GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/8/img/70508.JPG)
9 |
873905 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
9 |
B013063 - VIS SPECIALE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
10 |
O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035- More informationQuantity required : 1 |
|||||||||
|
10 |
B013608 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/4/5/img/39045.jpg)
11 |
848474 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
11 |
874546 - VIS BRIDE More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
12 |
CLUTCH COMMAND GASKET "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO, SHIVER -825577- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/0/1/img/43301.jpg)
13 |
974112 - CIRCLIPS 14.22.5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
14 |
WATER PUMP GASKET (20X30X5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82897R- More informationQuantity required : 1 |
|||||||||
|
15 |
430136 - BOUCHON More informationQuantity required : 3 |
|||||||||
|
16 |
878567 - JET More informationQuantity required : 2 |
|||||||||
|
17 |
487073 - JOINT More informationQuantity required : 2 |
|||||||||
|
18 |
B013349 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
19 |
1A003631R - GOUJON More informationQuantity required : 8 |
|||||||||
|
20 |
974051 - GOUJON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
21 |
006642 - CIRCLIPS S00664200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/9/9/img/41499.jpg)
22 |
BEARING SHELL -- RED - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8783940001- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/1/img/41501.jpg)
22 |
BEARING SHELL -- YELLOW - UPPER "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8783940003- More informationQuantity required : 2 |
|||||||||
|
22 |
8783940002 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
22 |
8783940004 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/3/7/img/41537.jpg)
23 |
BEARING SHELL - RED - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8793650001- More informationQuantity required : 2 |
|||||||||
|
23 |
8793650002 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
23 |
8793650003 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
23 |
8793650004 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
24 |
876320 - GOUJON More informationQuantity required : 2 |
|||||||||
|
25 |
873928 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
26 |
875935 - ROULEMENT More informationQuantity required : 1 |
|||||||||
