Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

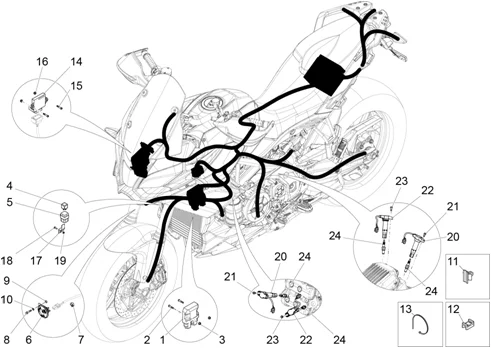

Dispositifs électriques : 11.010 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_11.010.PNG)
1 |
680167 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.JPG)
2 |
AP8152128 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
4 |
INJECTION RELAY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -895481- More informationQuantity required : 1 |
||||||
|
5 |
896715 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
6 |
2B000221 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
7 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
9 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
10 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
895807 - SUPPORT More informationQuantity required : 1 |
||||||
|
12 |
896675 - SUPPORT More informationQuantity required : 4 |
||||||
|
13 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
13 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.JPG)
13 |
AP8120657 - COLLIER More informationQuantity required : 13 |
||||||
|
14 |
B045321 - CENTRALE More informationQuantity required : 1 |
||||||
|
14 |
890933 - CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/2/img/50852.jpg)
15 |
AP8150265 - VIS TCEI M 5 X 25 More informationQuantity required : 2 |
||||||
|
15 |
AP8152128 - VIS More informationQuantity required : 2 |
||||||
|
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
16 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
17 |
AP8234094 - SUPPORT P-FUSIBLES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
18 |
AP8152268 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
19 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451- More informationQuantity required : 1 |
||||||
|
20 |
875914 - BOBINE HT More informationQuantity required : 2 |
||||||
|
21 |
874554 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
22 |
8764555 - BOBINE HT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/5/img/70535.jpg)
23 |
874555 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
24 |
SPARK PLUG "NGK" CR8EKB "PIAGGIO GENUINE PART" 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO -639687- More informationQuantity required : 4 |
