Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

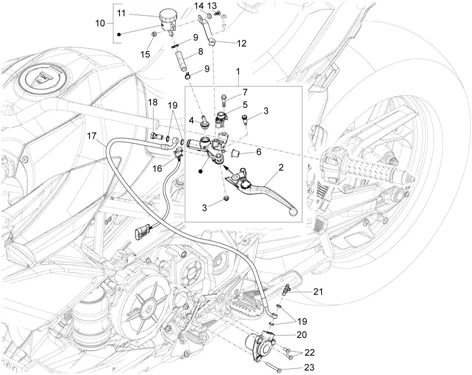

Guidon - commandes : 07.030 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_07.030.PNG)
1 |
896259 - POMPE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/4/img/46004.jpg)
2 |
LEVIER EMBRAYAGE ORIGINE PIAGGIO APRILIA 1200 CAPONORD 2014> 1200 DORSODURO 2010>, 1000 RSV-2 1998>2003, 1000 TUONO 2002>2009 -AP8113758- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
3 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
4 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
|
5 |
AP8168501 - BASE RETROVISEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/1/0/img/48710.jpg)
6 |
AP8133522 - COIFFE; More informationQuantity required : 1 |
||||||
|
7 |
AP8213299 - VIS CALOTTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
8 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
9 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
AP8106382 - RESERVOIR HUILE CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
11 |
CAP FOR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO -AP8113553- More informationQuantity required : 1 |
||||||
|
12 |
CLUTCH MASTER CYLINDER SUPPORT- "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD -AP8134898- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.JPG)
13 |
AP8150538 - VITE TBEI M5 X 10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.JPG)
14 |
AP8150272 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
|
15 |
AP8150539 - DADO M5 CHIUSO More informationQuantity required : 1 |
||||||
|
16 |
B044511 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
17 |
B045999 - TUYAU EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
19 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
20 |
85221R - CYLINDRE More informationQuantity required : 1 |
||||||
|
21 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/6/img/70516.jpg)
22 |
874037 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/6/1/img/41361.jpg)
23 |
873268 - VIS More informationQuantity required : 1 |
