Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

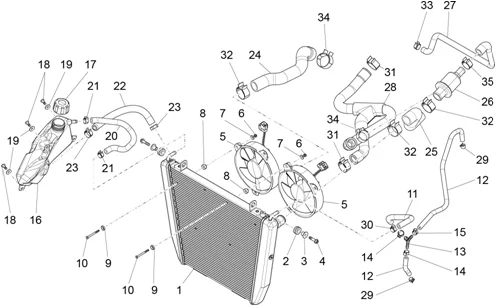

Installation refroidissement : 10.020 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_10.020.PNG)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -B046128- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
2 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
3 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
4 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
5 |
622055 - ELECTROVENTILATEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
7 |
AP8150011 - RONDELLE More informationQuantity required : 6 |
||||||
|
8 |
893513 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
9 |
893823 - RONDELLE More informationQuantity required : 6 |
||||||
|
10 |
893514 - VIS FHC More informationQuantity required : 6 |
||||||
|
11 |
AP8144506 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
12 |
897036 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 2 |
||||||
|
13 |
897035 - RACCORD EN "Y" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
14 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
15 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903- More informationQuantity required : 1 |
||||||
|
16 |
B045075 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
17 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
18 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
19 |
AP8150013 - RONDELLE More informationQuantity required : 3 |
||||||
|
20 |
2B000174 - TUY.PURGE RAD More informationQuantity required : 1 |
||||||
|
21 |
CM226901 - COLLIER More informationQuantity required : 2 |
||||||
|
22 |
2B000175 - TUBE REMPL. RADIAT. More informationQuantity required : 1 |
||||||
|
23 |
CM226902 - COLLIER More informationQuantity required : 2 |
||||||
|
24 |
2B000055 - TUYAU SOUPAP-RADIAT. More informationQuantity required : 1 |
||||||
|
25 |
2B000054 - TUYAU SOUPAP-RADIAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/9/img/69109.jpg)
26 |
THERMOSTAT "PIAGGIO GENUINE PART" 750-900 DORSODURO, SHIVER, 1200 CAPONORD, 850 SRV/GILERA 800 GP -834232- More informationQuantity required : 1 |
||||||
|
27 |
894511 - TUYAU More informationQuantity required : 1 |
||||||
|
28 |
894512 - TUYAU More informationQuantity required : 1 |
||||||
|
29 |
898060 - COLLIER SERR. TUBE More informationQuantity required : 2 |
||||||
|
30 |
CM226901 - COLLIER More informationQuantity required : 1 |
||||||
|
31 |
CM226909 - COLLIER More informationQuantity required : 2 |
||||||
|
32 |
CM226905 - COLLIER More informationQuantity required : 3 |
||||||
|
33 |
CM226903 - COLLIER More informationQuantity required : 1 |
||||||
|
34 |
CM226906 - COLLIER More informationQuantity required : 2 |
||||||
|
35 |
CM226908 - COLLIER More informationQuantity required : 1 |
