Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

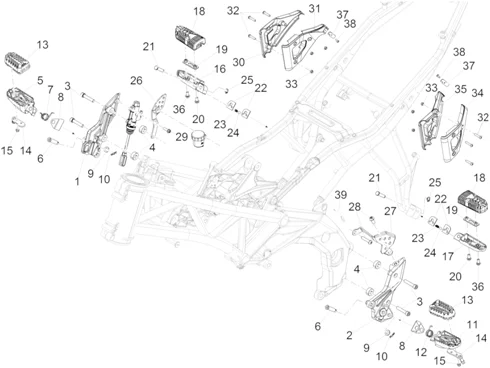

Chassis : 01.020 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_01.020.PNG)
1 |
B045240 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
B045241 - SUP.PL.PILOTE GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
3 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 4 |
||||||
|
4 |
B045837 - DOUILLE More informationQuantity required : 4 |
||||||
|
5 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, 750 DORSODURO -859919- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/2/img/72602.jpg)
6 |
AP9100197 - PERNO ROTAZIONE PEDANA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
7 |
RETURN SPRING FOR RIDER FOOTREST (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/6/img/40726.jpg)
8 |
FOOTREST PLATE "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD -859921- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/0/img/72040.jpg)
9 |
AP8163165 - RONDELLE INOX More informationQuantity required : 2 |
||||||
|
10 |
AP8201431 - GOUPILLE More informationQuantity required : 2 |
||||||
|
11 |
859920 - R-PIED PILOTE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
12 |
AP9100195 - MOLLA RICHIAMO PEDANA LATO SX More informationQuantity required : 1 |
||||||
|
13 |
898639 - LATERAL PROTECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/7/2/3/img/37723.jpg)
14 |
FOOTREST PLATE "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -2B000303- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
15 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/1/4/img/203314.JPG)
16 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
|
16 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/9/9/img/49899.jpg)
17 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER 2007>900 SHIVER 2017>, 900 DORSODURO2017>, 125 TUONO 2017>, 650 PEGASO 2005>, 1200 CAPONORD 2014>, 850 MANA 2007> -AP8145009- More informationQuantity required : 1 |
||||||
|
18 |
898368 - PROTECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
19 |
FOOTREST PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -GU32441210- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/2/img/73402.JPG)
21 |
CM228401 - PIVOT REPOSE-PIEDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
22 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
23 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
24 |
AP8110110 - BILLE D.7 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
25 |
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573- More informationQuantity required : 2 |
||||||
|
26 |
890164 - PROTECTION More informationQuantity required : 1 |
||||||
|
27 |
860987 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
28 |
AP8152058 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
29 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
30 |
B044842 - PROTECT.DTE More informationQuantity required : 1 |
||||||
|
31 |
B044844 - INTERNAL, RIGHT HEEL FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
32 |
AP8152270 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
33 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/2/9/img/62429.jpg)
34 |
B044843 - EXTERNAL, LEFT HEEL FOOTREST More informationQuantity required : 1 |
||||||
|
35 |
B044845 - INTERNAL, LEFT HEEL FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
36 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
37 |
B046342 - CROCHET PORTE-SACS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
38 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
|
39 |
AP8181139 - PARE-POUSSIERE More informationQuantity required : 1 |
