Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

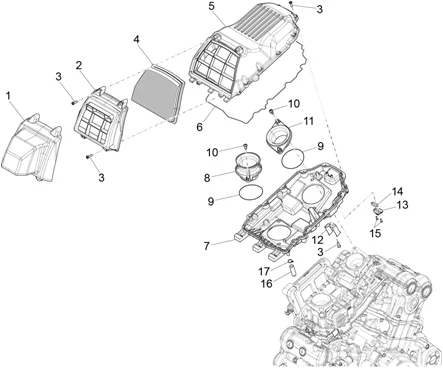

Moteur : 03.050 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_03.050.PNG)
1 |
2B000186 - PROTECTION More informationQuantity required : 1 |
||||||
|
2 |
B045827 - COUVERCLE DE FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
3 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 15 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/5/1/img/42451.jpg)
4 |
AIR FILTER "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014>, 1200 DORSODURO 2010> -896237- More informationQuantity required : 1 |
||||||
|
5 |
896236 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
6 |
AP8120615 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
B046153 - BASE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
8 |
B046197 - CONNECTION PIPE More informationQuantity required : 1 |
||||||
|
9 |
880689 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/3/3/img/41933.jpg)
10 |
SCREW - FOR AIR FILTER FASTENING "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, DORSODURO, 1000 RSV-4, TUONO -893132- More informationQuantity required : 4 |
||||||
|
11 |
2A000045 - INTAKE PIPE More informationQuantity required : 1 |
||||||
|
12 |
2B000125 - BRIDE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.JPG)
13 |
GU30729330 - DETEC.TEMPER.AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
14 |
GU30027931 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
15 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
|
16 |
AP8161054 - TUBETTO SCARICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
17 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 1 |
