Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

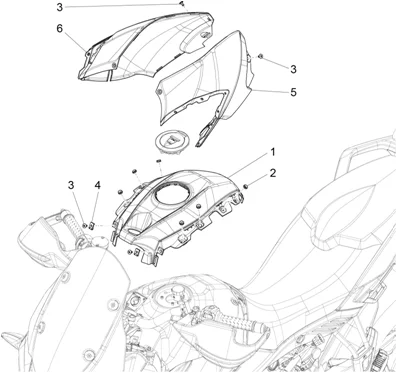

Carrosserie : 02.090 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_02.090.PNG)
1 |
B044837 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
197551 - TAMPON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/2/5/img/62425.jpg)
5 |
FUEL TANK COVER - LEFT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014> GREY -B04483900YE5 - More informationQuantity required : 1 |
||||||
|
5 |
B04483900XRC - COUVERCLE G. More informationQuantity required : 1 |
||||||
|
5 |
B04483900XN2 - AILE G More informationQuantity required : 1 |
||||||
|
5 |
B04483900BM - AILE G More informationQuantity required : 1 |
||||||
|
6 |
B04483800BM - AILE D More informationQuantity required : 1 |
||||||
|
6 |
B04483800XN2 - AILE D More informationQuantity required : 1 |
||||||
|
6 |
B04483800XRC - COUVERCLE D. More informationQuantity required : 1 |
||||||
|
6 |
FUEL TANK COVER - RIGHT "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014> GREY -B04483800YE5- More informationQuantity required : 1 |
