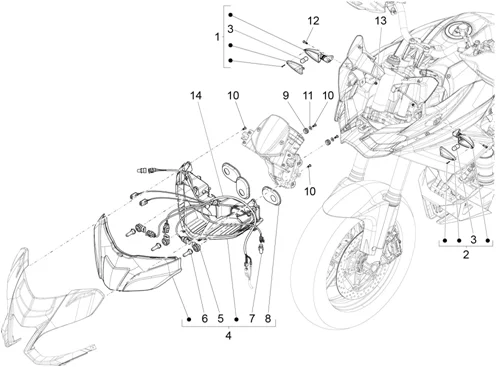

Feux - instruments : 08.010 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_08.010.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/4/img/39844.JPG)
1 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO -854555- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/5/img/39845.jpg)
2 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO -854556- More informationQuantity required : 2 |
||||||
3 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/7/img/38267.jpg)
4 |
HEAD LIGHT - "PIAGGIO GENUINE PART" APRILIA 850 SRV, 1000 RSV-4, 1200 CAPONORD -2R000161- More informationQuantity required : 1 |
||||||
|
5 |
893930 - PORTE-AMPOULE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
6 |
LIGHT BULB (12V - 55W H11) "PIAGGIO GENUINE PART" 50-125 APRILIA RS, 1000 RSV-4, CAPONORD, PEGASO, TUONO -640754- More informationQuantity required : 3 |
||||||
|
7 |
893929 - FEU DE POSITION More informationQuantity required : 2 |
||||||
|
8 |
894796 - COIFFE PHARE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
9 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
10 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
11 |
AP8150382 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
620344 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
14 |
858867 - CABLAGE FEU AV More informationQuantity required : 1 |
