Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

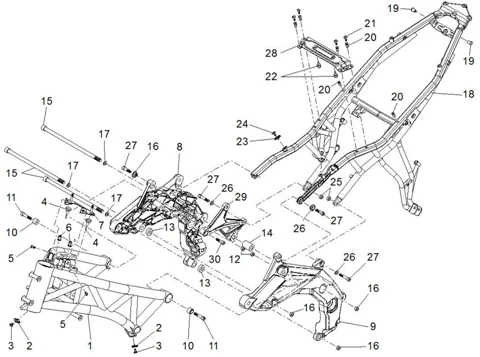

Chassis : 01.010 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_01.010.PNG)
1 |
B04511400XI1 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
2 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
4 |
AP8220238 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
5 |
AP8150537 - VITE TBEI M6 X 12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.JPG)
6 |
HEX THREADED INSERT "PIAGGIO GENUINE PART"COMMON TO MOTORBIKE RANGE -AP8102902- More informationQuantity required : 2 |
||||||
|
7 |
B046009 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/2/img/39122.JPG)
8 |
RIGHT FLANK FRAME "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER 2010>2018, 750-900-1200 DORSODURO 2010>2018 NOIR -85153600XNB- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/5/img/39125.JPG)
9 |
85153700XNB - FLANC G, NOIR More informationQuantity required : 1 |
||||||
|
10 |
853037 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/8/2/img/39482.jpg)
11 |
SCREW - FRONT FRAME FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO -852165- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
12 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 4 |
||||||
|
13 |
853036 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
14 |
896014 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
851784 - TIRANT PRISE MOTEUR; More informationQuantity required : 3 |
||||||
|
16 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
17 |
AP8150101 - WASHER More informationQuantity required : 3 |
||||||
|
18 |
2B001622 - ACCROCHE-SELLE More informationQuantity required : 1 |
||||||
|
18 |
B044216 - ACCROCHE-SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
19 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
20 |
AP8201755 - RIVET FILETE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
21 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
22 |
AP8120001 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
23 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
24 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
25 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
26 |
AP8150017 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
27 |
AP8150236 - VIS More informationQuantity required : 4 |
||||||
|
28 |
B045316 - PATTE More informationQuantity required : 1 |
||||||
|
29 |
851541 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
30 |
AP8150195 - VIS More informationQuantity required : 1 |
