Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

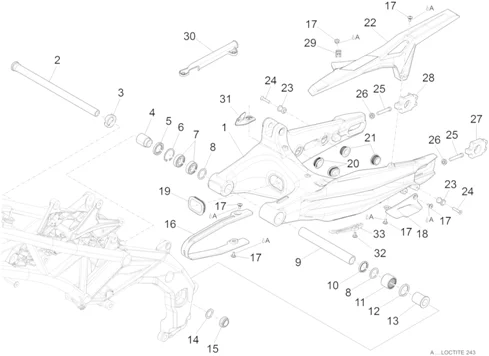

Chassis : 01.050 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_01.050.PNG)
1 |
85623200ZEN - FOURCHE AR More informationQuantity required : 1 |
|||||||||
|
2 |
B045424 - PIVOT FOURCHE AR More informationQuantity required : 1 |
|||||||||
|
3 |
AP8121201 - BAGUE PIVOT FOURCHE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8121200 - DOUILLE DE REGLAGE More informationQuantity required : 1 |
|||||||||
|
5 |
AP8144006 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
6 |
AP8121204 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/9/5/img/41595.jpg)
7 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -890002- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
8 |
AP8144048 - JOINT TORIQUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/7/0/img/46870.jpg)
9 |
AP8121570 - DISTANZIALE INTERNO PERNO FORC More informationQuantity required : 1 |
|||||||||
|
10 |
890126 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.JPG)
11 |
AP8110078 - CAGE A ROULEAUX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.JPG)
12 |
GASKET RING FOR SWINGING ARM AXLE (LEFT) "PIAGGIO GENUINE PART" APRILIA CAPONORD 1200 2015>2017, DORSODURO 750-900-1200 2010>2017, RSV4 1000 2009>2018 -AP8144005- More informationQuantity required : 1 |
|||||||||
|
13 |
AP8121203 - DOU.INT.TIGE FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.JPG)
14 |
AP8125687 - RONDELLE AXE ROUE AR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
15 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
|||||||||
|
16 |
AP8144168 - GALET GUIDE-CHA?NE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
17 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 6 |
|||||||||
|
18 |
859929 - GALET GUIDE-CHA?NE More informationQuantity required : 1 |
|||||||||
|
19 |
860898 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
20 |
860899 - BOUCHON More informationQuantity required : 2 |
|||||||||
|
21 |
860900 - BOUCHON More informationQuantity required : 2 |
|||||||||
|
22 |
856787 - CARTER CHA?NE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/8/img/71498.jpg)
23 |
AP8121890 - DOUILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.JPG)
24 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
|||||||||
|
24 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
25 |
AP8152305 - VIS REGLAGE T-CHA?NE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.JPG)
26 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
|
26 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
|
27 |
B046077 - PATIN TENDEUR DE CHA?NE More informationQuantity required : 1 |
|||||||||
|
28 |
B046078 - PATIN TENDEUR DE CHA?NE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
29 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
|||||||||
|
30 |
895349 - PROTECTION TUBE FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/4/7/img/62647.jpg)
31 |
B046021 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
32 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 1 |
|||||||||
|
33 |
2B000307 - TAMPON More informationQuantity required : 1 |
|||||||||
