Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

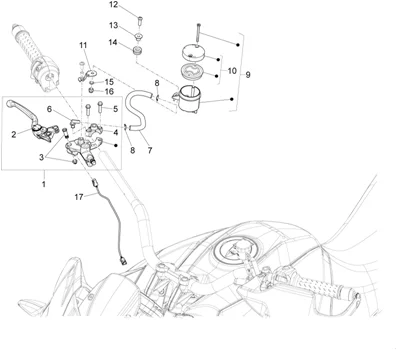

Système frein abs : 06.010 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_06.010.PNG)
1 |
2B003785 - MAIT. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/9/6/img/139096.jpg)
2 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014 -2B003818- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
3 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
|
4 |
AP8168501 - BASE RETROVISEUR; More informationQuantity required : 1 |
||||||
|
5 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
6 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
7 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
8 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
TANK FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FALCO, FUTURA, 750-1200 DORSODURO, 1200 CAPONORD -AP8113499- More informationQuantity required : 1 |
||||||
|
10 |
AP8113598 - BOUCHON RES.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/0/7/7/img/49077.jpg)
11 |
FRONT BRAKE MASTER CYLINDER SUPPORT- "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD -AP8134899- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
12 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
13 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
15 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 1 |
||||||
|
17 |
B044510 - INTERRUPTEUR More informationQuantity required : 1 |
