Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

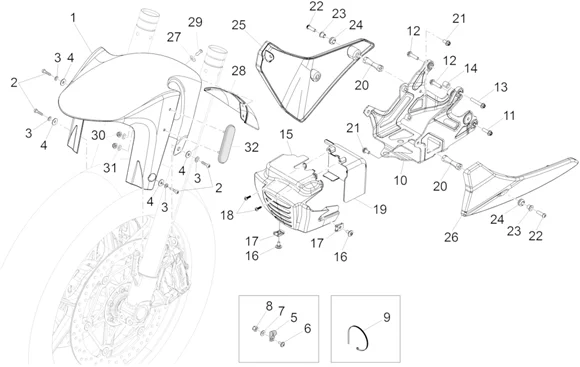

Carrosserie : 02.030 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_02.030.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/0/0/img/145600.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, 900 SHIVER, 1000 RSV-4, 1000-1100 TUONO -2B003404- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
2 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 4 |
||||||
3 |
AP8152154 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
4 |
AP8150248 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/4/img/71164.jpg)
5 |
AP8101890 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
6 |
AP8150493 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
7 |
895916 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
8 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
9 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
10 |
B045351 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
11 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
13 |
AP8152282 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/9/7/img/40997.jpg)
14 |
860667 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
2B000251 - CACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
16 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
|
19 |
2B000252 - CACHE More informationQuantity required : 1 |
||||||
|
20 |
860628 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
22 |
AP8224470 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
23 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
24 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
25 |
2B000249 - AILE D More informationQuantity required : 1 |
||||||
|
26 |
2B000250 - AILE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
27 |
AP8150501 - ROSETTA M4 More informationQuantity required : 4 |
||||||
|
28 |
2B000500 - BAVETTE ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
|
29 |
AP8102029 - RIVET A DECLIC More informationQuantity required : 4 |
||||||
|
30 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
31 |
AP8150158 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
32 |
AP8124719 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
