Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

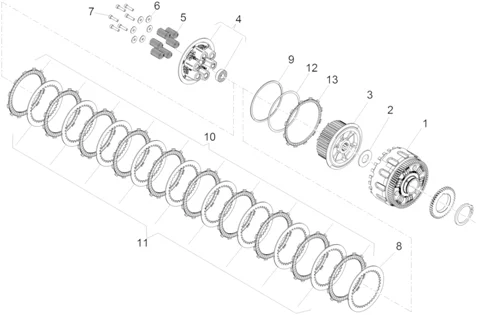

Moteur : 03.230 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_03.230.PNG)
1 |
880871 - RIVETTED CLUTCH HOUSING ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.JPG)
2 |
974320 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
878845 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
4 |
873719 - PLATEAU POUSSEE CPL More informationQuantity required : 1 |
||||||
|
5 |
879175 - RESSORT More informationQuantity required : 6 |
||||||
|
6 |
879176 - RONDELLE More informationQuantity required : 6 |
||||||
|
7 |
873718 - VIS More informationQuantity required : 6 |
||||||
|
8 |
875691 - DISQUE COND. More informationQuantity required : 1 |
||||||
|
9 |
875223 - DISQUE COND. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/8/4/img/41484.jpg)
10 |
DRIVING CLUTCH DISC "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, DORSODURO -877812- More informationQuantity required : 10 |
||||||
|
11 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, DORSODURO -875690- More informationQuantity required : 9 |
||||||
|
12 |
875222 - DISQUE COND. More informationQuantity required : 1 |
||||||
|
13 |
875224 - DISQUE COND. More informationQuantity required : 1 |
