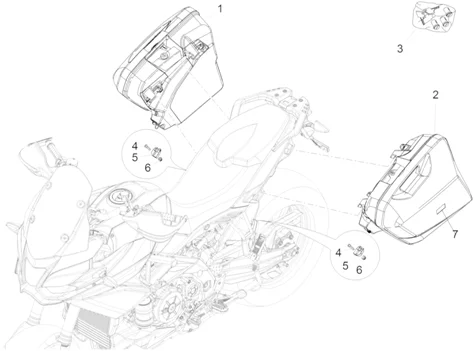

Carrosserie : 02.165 VALISES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_02.165.PNG)
1 |
2B000061000BM - RH SUITCASE More informationQuantity required : 1 |
||||||
|
1 |
2B000061000XRC - CAS DE DROITE More informationQuantity required : 1 |
||||||
|
1 |
2B000061000YE5 - RH SUITCASE More informationQuantity required : 1 |
||||||
|
1 |
2B000061400XN2 - DROIT VALISE More informationQuantity required : 1 |
||||||
|
2 |
2B000062400XN2 - VALISE GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
2B000062000YE5 - LH SUITCASE More informationQuantity required : 1 |
||||||
|
2 |
2B000062000XRC - VALISE CTTE GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
2B000062000BM - LH SUITCASE More informationQuantity required : 1 |
||||||
|
3 |
2D000025 - BAG LOCK CYLINDER WITH KEYS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/7/img/71867.jpg)
4 |
SELF BREAKING SCREW - FOR KEY LOCK "PIAGGIO GENUINE PARTS" COMMON FOR ALL APRILIA BIKES -AP8150351- More informationQuantity required : 2 |
||||||
|
5 |
AP9008492 - COUPLAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
6 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 2 |
||||||
|
7 |
858472 - PLAQUE More informationQuantity required : 2 |
