Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

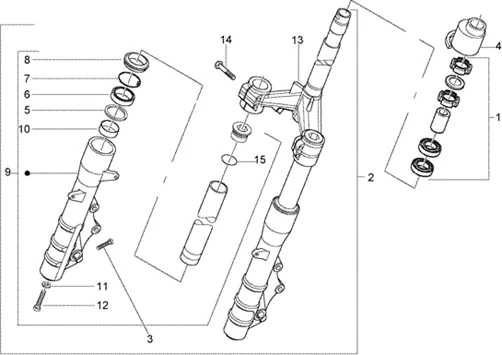

Suspensions-roues : T30 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/7/img/82357.jpg)
1 |
JEU DE DIRECTION (CAGE A ROULEAUX CONIQUE) ORIGINE PIAGGIO 125-250-500 X9, 125 X8 2004>/GILERA 500 NEXUS 2000> -5982615 Plus d'informationsQuantité requise : 1 |
||||||
2 |
FOURCHE ORIGINE PIAGGIO GILERA 500 NEXUS -56141R- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
649619 - BOULON Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
975683 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
975701 - JOINT DE FOURCHE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/5/img/67375.jpg)
6 |
JOINT SPI DE FOURCHE KAYABA (D41) ORIGINE PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV -599267 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/9/img/67379.jpg)
7 |
CLIPS DE FOURCHE KAYABA ORIGINE PIAGGIO 400-500 BEVERLY 2005>2012/800 GP APRILIA 2007>2011 -599271 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/0/img/67380.jpg)
8 |
PARE POUSSIERE DE FOURCHE KAYABA ORIGINE PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV -599272 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
975708 - BRAS DE FOURCHE DROIT Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
975709 - BRAS DE FOURCHE GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/3/img/67373.jpg)
10 |
DOUILLE DE FOURREAU DE FOURCHE SUPERIEUR ORIGINE PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, GP 800/APRILIA 850 SRV -599265 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/8/img/67378.jpg)
11 |
JOINT/RONDELLE DE FOURCHE INFERIEUR KAYABA ORIGINE PIAGGIO COMMUN A LA GAMME -599270 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/7/img/67377.jpg)
12 |
VIS DE FOURCHE KAYABA ORIGINE PIAGGIO COMMUN A LA GAMME -599269 Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
975706 - T DE FOURCHE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
975707 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
15 |
JOINT FOURCHE |
