Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

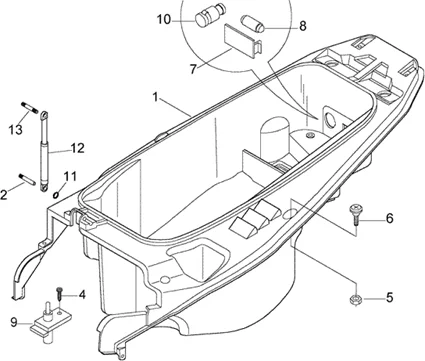

Châssis : T26 PORTE-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T26.PNG)
1 |
621886 - LOGEMENT CASQUE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GOUPILLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/7/0/7/img/83707.jpg)
2 |
GOUPILLE AMORTISSEUR DE SELLE ORIGINE PIAGGIO X9 -620767 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/8/2/5/img/83825.jpg)
3 |
VERRIN DE SELLE ORIGINE PIAGGIO 125-250-500 X9/GILERA 500 NEXUS -621117 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
4 |
VIS AUTOTARAUDEUSE (3,5X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -018536 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/3/img/65813.jpg)
5 |
ECROU (M12X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -191962 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
7 |
ECLAIRAGE/PLAFONNIER COFFRE ORIGINE PIAGGIO COMMUN A LA GAMME -293154 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
8 |
AMPOULE/LAMPE 12V 5W NAVETTE ORIGINE PIAGGIO COMMUN A LA GAMME -071633 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
9 |
INTERUPTEUR ECLAIRAGE COFFRE A CASQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -255323 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/5/img/66275.jpg)
10 |
PRISE DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME -294770 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
11 |
CLIPS/CIRCLIPS DIAMETRE 5MM ORIGINE PIAGGIO COMMUN A LA GAMME -005965 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
975822 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GOUPILLE |
