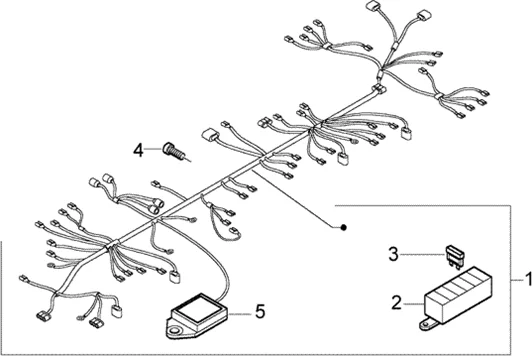

Connexions électriques : T40 GROUPE PRINCIPAL DES CÂBLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T40.PNG)
1 |
FAISCEAU CABLES |
||||||
|
2 |
584002 - CLIP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
3 |
FUSIBLE PLAT ENFICHABLE STANDARD 7,5A ORIGINE PIAGGIO COMMUN A LA GAMME -252945 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
3 |
FUSIBLE PLAT ENFICHABLE STANDARD 15A ORIGINE PIAGGIO COMMUN A LA GAMME -290860 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
291499 - FUSIBLE 7A Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
FUSIBLE PLAT ENFICHABLE STANDARD 10A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -292507 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
3 |
FUSIBLE PLAT ENFICHABLE STANDARD 5A ORIGINE PIAGGIO COMMUN A LA GAMME -293256 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/4/6/img/81846.jpg)
3 |
FUSIBLE PLAT ENFICHABLE STANDARD 3A ORIGINE PIAGGIO COMMUN A LA GAMME -582930 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
4 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
584960 - DISPOSITIF Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/8/img/67948.jpg)
6 |
RELAIS DE DEMARREUR ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -641933 Plus d'informationsQuantité requise : 1 |
