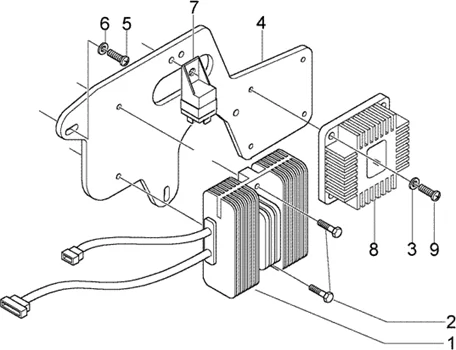

Connexions électriques : T39 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/3/img/67823.jpg)
1 |
REGULATEUR DE TENSION MAXISCCOTER ORIGINE PIAGGIO 250-300-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/6/8/img/110768.jpg)
2 |
VIS BRIDE TH (6X27) ORIGINE PIAGGIO COMMUN A LA GAMME -B011784 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
3 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 4 |
||||||
4 |
640502 - ETRIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
6 |
RONDELLE RESSORT (6,4X16X1) ORIGINE PIAGGIO COMMUN A LA GAMME -078307 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/8/img/67948.jpg)
7 |
RELAIS DE DEMARREUR ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -641933 Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
DISPOSITIF ELECTRONIQUE INJECTION ORIGINE PIAGGIO GILERA 500 NEXUS -CM078402- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
VIS CRUCIFORME (5X17) ORIGINE PIAGGIO COMMUN A LA GAMME -834065 Plus d'informationsQuantité requise : 4 |
