Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

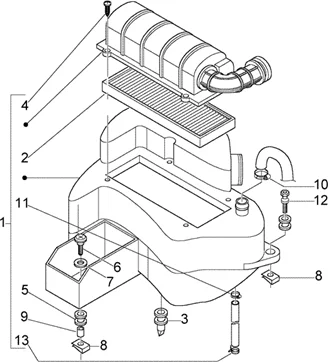

Moteur : T17 FILTRE A AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T17.PNG)
1 |
840551 - BOITE FILTRE AIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/1/img/66761.jpg)
2 |
ELEMENT/MOUSSE DE FILTRE A AIR MAXISCOOTER ORIGINE PIAGGIO 500 X9 2000>2007, 125 HEXAGON GTX 1998>2005/GILERA 500 NEXUS 2003>2011 -487845 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
PIPETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
4 |
VIS CRUCIFORME (4X30) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -478533 Plus d'informationsQuantité requise : 5 |
||||||
|
5 |
257301 - TAMPON Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
6 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
7 |
VIS TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -031092 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
9 |
DOUILLE ENTRETOISE (7X10X10) ORIGINE PIAGGIO COMMUN A LA GAMME -257302 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
10 |
COLLIER DURITE REFROIDISSEMENT OU FILTRE A AIR (25.6MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001907 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
11 |
COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
975677 - TIGE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
13 |
COLLIER DE SERRAGE DURITE (10X13) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002908 Plus d'informationsQuantité requise : 1 |
