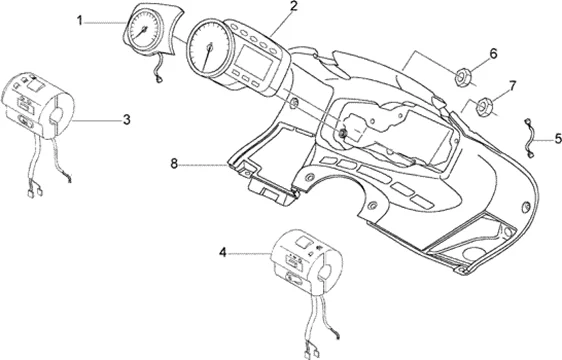

Connexions électriques : T33 GROUPE DES INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T33.PNG)
1 |
COMPTEUR ORIGINE PIAGGIO GILERA 500 NEXUS 1998>2005 -584900- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
584899 - COMPTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
649607 - DISPOSITIF Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
584886 - DISPOSITIF Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/1/8/img/82118.jpg)
5 |
FAISCEAU ELECTRIQUE GROUPE INSTRUMENT ORIGINE PIAGGIO GILERA 500 NEXUS 1998>2005 -584802 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
6 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/2/5/img/71025.jpg)
8 |
ENTOURAGE TABLEAU DE BORD ORIGINE PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975072000G Plus d'informationsQuantité requise : 1 |
