Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

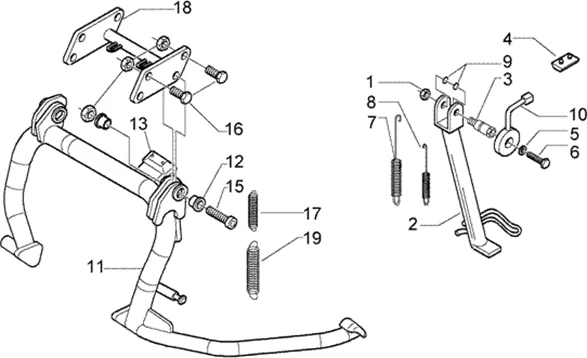

Châssis : T19 BEQUILLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
1 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
||||||
2 |
975717 - BEQUILLE M35 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
583155 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
4 |
TAMPON DE BEQUILLE ORIGINE PIAGGIO COMMUN LA GAMME SCOOTER ET MAXISCOOTER -582885 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
6 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
7 |
RESSORT DE BEQUILLE LATERAL ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -295789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
8 |
RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -295788 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
9 |
JOINT TORIQUE BEQUILLE LATERALE ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/8/7/img/81787.jpg)
10 |
CONTACTEUR/INTERRUPTEUR DE BEQUILLE ORIGINE PIAGGIO 125-250-500 BEVERLY, 125-500 X9 -582633 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
BEQUILLE CENTRALE ORIGINE PIAGGIO GILERA 500 NEXUS -975821- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/4/img/68014.jpg)
12 |
BAGUE/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -647225 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/3/img/67043.jpg)
13 |
TAMPON DE BEQUILLE ORIGINE PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/1/img/67431.jpg)
13 |
SILENTBLOC/TAMPON DE BEQUILLE ORIGINE PIAGGIO 500 NEXUS, 50-125 ET4 -600351 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/5/img/67285.jpg)
15 |
VIS BTR (10X50) ORIGINE PIAGGIO COMMUN A LA GAMME -583480 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
16 |
BOULON TH ORIGINE PIAGGIO COMMUN A LA GAMME M10X20 -031153 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/8/img/67278.jpg)
17 |
RESSORT (PETIT) BEQUILLE CENTRALE (150X19.5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 CC -583162 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
9757555 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/7/img/67277.jpg)
19 |
RESSORT (GROS) BEQUILLE CENTRALE (150X30) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 CC -583161 Plus d'informationsQuantité requise : 1 |
