Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

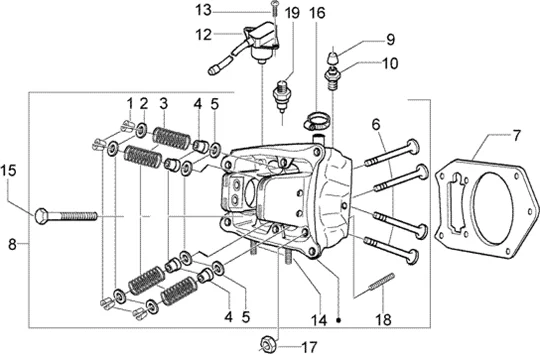

Moteur : T5 ENSEMBLE CULASSE-SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T5.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
DEMI-LUNE/CLAVETTE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -285846 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/2/img/68752.jpg)
2 |
GODET SUPERIEUR SOUPAPE ORIGINE PIAGGIO 500-530 MP3 -828396 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/3/img/68583.jpg)
3 |
RESSORT DE SOUPAPE ORIGINE PIAGGIO MOTEUR 400-500 MAXISCOOTER -826103 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
JOINT/BAGUE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME -436438 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/2/img/68592.jpg)
5 |
RONDELLE DE SOUPAPE INFERIEURE ORIGINE PIAGGIO COMMUN A LA GAMME -826256 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/6/img/68746.jpg)
6 |
SOUPAPE ECHAPPEMENT MAXISCOOTER 400-500 CC ORIGINE PIAGGIO -828321 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/7/img/68747.jpg)
6 |
SOUPAPE ADMISSION ORIGINE PIAGGIO COMMUN A L'ENSEMBLE DE LA GAMME MAXISCOOTER 400-500 -828322 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/5/img/68885.jpg)
7 |
JOINT DE CULASSE ORIGINE PIAGGIO 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 400-500 SCARABEO, ATLANTIC -830008 Plus d'informationsQuantité requise : 1 |
||||||
8 |
82987R1 - CULASSE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
9 |
063435 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
10 |
VIS DE PURGE ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME -430045 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/2/img/70702.jpg)
11 |
GOUJON (6X27.5) DE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -878991 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
12 |
CAPTEUR ALLUMAGE/PHASE TOURS ORIGINE PIAGGIO 400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP -6389915 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
13 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
14 |
GOUJON (8X46) ORIGINE PIAGGIO MULTI-USAGE COMMUN LA GAMME -1A003632R Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
15 |
VIS TH BRIDE (6X90) ORIGINE PIAGGIO COMMUN A LA GAMME -B016776 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
16 |
COLLIER DURITE REFROIDISSEMENT (28.6 MM) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001915 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/8/img/69018.jpg)
17 |
ECROU HEXAGONAL HAUT ORIGINE PIAGGIO COMMUN A LA GAMME -832783 Plus d'informationsQuantité requise : 4 |
||||||
|
18 |
GOUJON (6X27.5) DE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -878991 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
828646 - SENSOR TEMPERATURE Plus d'informationsQuantité requise : 1 |
