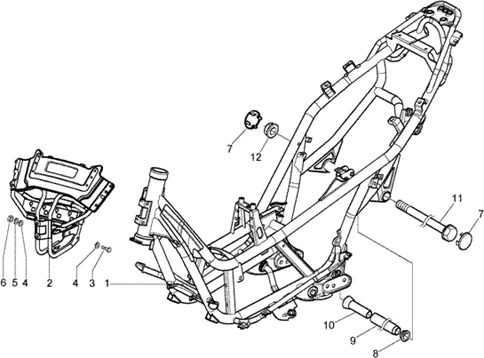

Châssis : T18 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T18.PNG)
1 |
Chássis |
||||||
|
2 |
9750394 - CHÁSSIS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
030059 - BOULON FIX POMPE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
4 |
RONDELLE PLATE (6,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -013950 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/3/1/6/img/94316.jpg)
7 |
BOUCHON CACHE AXE ORIGINE GILERA 500 NEXUS 2011< -975722 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
975104 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
975105 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
975108 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
975109 - BOULON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/2/8/img/71028.jpg)
12 |
ECROU BRAS OSCILLANT ORIGINE PIAGGIO GILERA 500 NEXUS, GP 800/APRILIA SRV 850 -975110 Plus d'informationsQuantité requise : 1 |
