Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

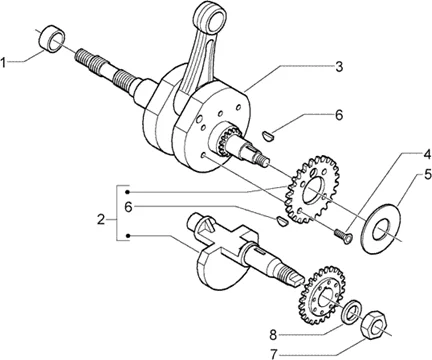

Moteur : T3 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T3.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/6/img/69566.jpg)
1 |
ENTRETOISE EMBIELLAGE ORIGINE PIAGGIO 500 MAXISCOOTER COMMUN A LA GAMME -848222 Plus d'informationsQuantité requise : 1 |
||||||
2 |
841456 - ROCHET SET * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/4/img/70414.jpg)
3 |
VILLEBREQUIN ORIGINE PIAGGIO 400 X8, X-EVO, BEVERLY, 500 X9, MP3, BEVERLY/400-500 ATLANTIC, SCARABEO -8720925001- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/5/img/70415.jpg)
3 |
EMBIELLAGE/VILLEBREQUIN (CAT-2) MAXISCOOTER ORIGINE PIAGGIO 400 MP3, X8, X-EVO, BEVERLY, 500 X9, 500 BEVERLY/APRILIA 400-500 ATLANTIC, SCARABEO/GILERA 500 NEXUS -8720925002 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/8/img/72728.jpg)
4 |
VIS BTR TETE FRAISEE (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016797 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/6/img/68886.jpg)
5 |
RONDELLE VILLEBREQUIN ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -830012 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
6 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMUN A LA GAMME -000267 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
ECROU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/3/img/65603.jpg)
7 |
ECROU (M14X1.5) (EX 0212146) ORIGINE PIAGGIO COMMUN A LA GAMME -0212146 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
829752 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
ENTRETOISE |
