Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

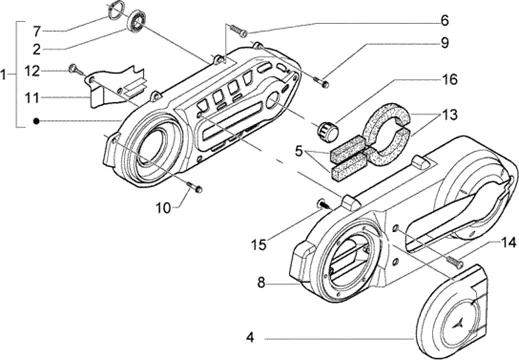

Moteur : T10 REFROIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/9/img/70639.jpg)
1 |
COUVERCLE/CACHE DE TRANSMISSION ORIGINE PIAGGIO 400-500 MP3 2007>, 400-500 BEVERLY 2005>, 400 X-EVO 2007>, 500 X10 2012>, 500 X9 2003>/GILERA 500 NEXUS 2006>, FUOCO 2007> -8769925 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/8/img/69138.jpg)
2 |
ROULEMENT (17X40X12) COUVERCLE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 350-400-500 -840277 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/4/img/69144.jpg)
3 |
COUVERCLE ROND DE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -840439 Plus d'informationsQuantité requise : 1 |
||||||
4 |
975681 - COUVERCLE RAFRR. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/8/img/69058.jpg)
5 |
MOUSSE INSONORISANTE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -833320 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
6 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -1A011120 Plus d'informationsQuantité requise : 7 |
||||||
|
6 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -1A011120 Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
7 |
CLIPS/CIRCLIPS (35.7X43.5X1.75) ORIGINE PIAGGIO COMMUN A LA GAMME -825667 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/9/2/img/139592.jpg)
8 |
COUVERCLE INSONORISANT DE TRANSMISSION ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO -1A005445 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
9 |
VIS BRIDE TH (8X70) ORIGINE PIAGGIO COMMUN A LA GAMME -B016766 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/7/img/69077.jpg)
10 |
VIS BRIDE TH (8X100) ORIGINE PIAGGIO COMMUN A LA GAMME -833664 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
DEFLECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
12 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/9/img/69059.jpg)
13 |
MOUSSE INSONORISANTE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -833321 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
15 |
VIS CRUCIFORME (4X30) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -478533 Plus d'informationsQuantité requise : 3 |
||||||
|
16 |
COUVERCLE ROND DE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -840439 Plus d'informationsQuantité requise : 1 |
