Eclatés de véhicule - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

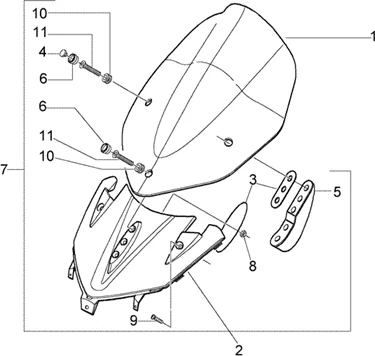

Châssis : T24 PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T24.PNG)
1 |
6565275 - PARE-BRIS Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/1/4/img/71014.jpg)
2 |
ENCADREMENT/FACE AVANT SUPERIEURE ORIGINE PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975051000G Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
975750 - KIT JOINTS * Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/2/img/67152.jpg)
4 |
BOUCHON DE PARE BRISE ORIGINE PIAGGIO 125-300-400-500 MP3/GILERA 125-250-300-500 NEXUS 2018< -577237 Plus d'informationsQuantité requise : 4 |
|||||||||
|
5 |
975760000G - KIT FIXATION PAREBRISE Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
621940 - COUVERCLE Plus d'informationsQuantité requise : 3 |
|||||||||
|
7 |
975760000G - KIT FIXATION PAREBRISE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
8 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -020206 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
9 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
10 |
560173 - SILENTBLOC Plus d'informationsQuantité requise : 3 |
|||||||||
|
11 |
BOULON |
|||||||||
