Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

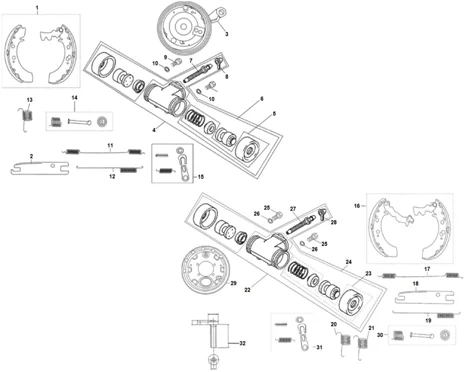

Transmisisons : 05.02 MACHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_05.02.PNG)
1 |
B003326 - SERIE MACHOIRE FREIN More informationQuantity required : 1 |
||||||
|
2 |
B003008 - STRUT More informationQuantity required : 1 |
||||||
|
3 |
B024113 - FREIN AVANT More informationQuantity required : 1 |
||||||
|
4 |
B003017 - CYLINDRE ROUE More informationQuantity required : 1 |
||||||
|
5 |
B003325 - KIT REVISION More informationQuantity required : 1 |
||||||
|
6 |
B003324 - KIT REVISION More informationQuantity required : 1 |
||||||
|
7 |
B003296 - VIS More informationQuantity required : 1 |
||||||
|
9 |
063440 - VIS More informationQuantity required : 2 |
||||||
|
10 |
012536 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
|
12 |
B003003 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
B003002 - RESSORT More informationQuantity required : 1 |
||||||
|
14 |
B003327 - SHOE HOLD DOWN KIT More informationQuantity required : 1 |
||||||
|
15 |
B006509 - KIT CLIP-PIVOT G. More informationQuantity required : 1 |
||||||
|
16 |
B003331 - KIT MACHOIRES More informationQuantity required : 1 |
||||||
|
16 |
B003330 - KIT MACHOIRES More informationQuantity required : 1 |
||||||
|
17 |
B003004 - RESSORT More informationQuantity required : 2 |
||||||
|
18 |
B003012 - STRUT More informationQuantity required : 2 |
||||||
|
19 |
B003003 - RESSORT More informationQuantity required : 2 |
||||||
|
20 |
B003011 - RESSORT More informationQuantity required : 1 |
||||||
|
21 |
B003002 - RESSORT More informationQuantity required : 1 |
||||||
|
22 |
B003014 - CYLINDRE ROUE More informationQuantity required : 1 |
||||||
|
23 |
925574 - KIT REVISION More informationQuantity required : 1 |
||||||
|
24 |
B003328 - KIT REVISION More informationQuantity required : 1 |
||||||
|
25 |
063440 - VIS More informationQuantity required : 4 |
||||||
|
26 |
012536 - RONDELLE More informationQuantity required : 4 |
||||||
|
27 |
B003300 - VIS More informationQuantity required : 2 |
||||||
|
29 |
B001228 - DISQUE More informationQuantity required : 1 |
||||||
|
29 |
B001225 - DISQUE PATIN FREIN More informationQuantity required : 1 |
||||||
|
30 |
B003327 - SHOE HOLD DOWN KIT More informationQuantity required : 1 |
||||||
|
31 |
B006509 - KIT CLIP-PIVOT G. More informationQuantity required : 1 |
||||||
|
32 |
B006509 - KIT CLIP-PIVOT G. More informationQuantity required : 1 |
