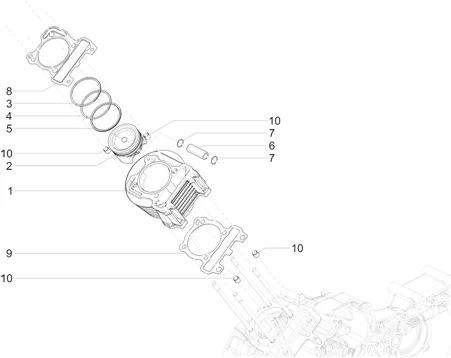

Moteur : 01.04 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.04.PNG)
1 |
SPB019317 - CYLINDER More informationQuantity required : 1 |
||||||
|
2 |
B014442 - PISTONE More informationQuantity required : 1 |
||||||
|
3 |
KIT1U000023 - RING SET More informationQuantity required : 1 |
||||||
|
4 |
KIT1U000023 - RING SET More informationQuantity required : 1 |
||||||
|
5 |
486355 - SEGMENT RACLEUR D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
6 |
PISTON PIN "PIAGGIO GENUINE PART" 125 MP3 2006>2013, X10 2012>2015/ VESPA GTS 2007>2016, VESPA LX 2006>2011 -482335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
7 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART"- LEADER ENGINE 125-250 -963486- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/9/4/img/113294.JPG)
8 |
B014555 - SEAL TETES / CYLINDRES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/5/img/110135.JPG)
9 |
CM166201 - JOINT CYLINDRE/CARTER More informationQuantity required : 0 |
||||||
|
9 |
CM166202 - JOINT CYLINDRE/CARTER More informationQuantity required : 0 |
||||||
|
9 |
CM166203 - JOINT CYLINDRE/CARTER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
10 |
435571 - PION DE CENTRAGE N°2 More informationQuantity required : 4 |
