Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

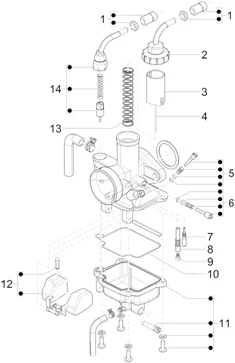

Moteur : 01.16 COMPOSANTS DE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.16.PNG)
1 |
B016869 - VIS EMBRAYAGE More informationQuantity required : 2 |
||||||
|
2 |
B016825 - COUVERCLE SOUPAPE More informationQuantity required : 1 |
||||||
|
3 |
B016827 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
4 |
1A001533 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
5 |
B016826 - VIS More informationQuantity required : 1 |
||||||
|
6 |
B016828 - VIS REGLAGE MINIMUM More informationQuantity required : 1 |
||||||
|
7 |
CM167801 - GICLEUR D'AIR More informationQuantity required : 1 |
||||||
|
8 |
CM167901 - GIGLEUR MAX More informationQuantity required : 1 |
||||||
|
9 |
CM167701 - GICLEUR More informationQuantity required : 1 |
||||||
|
10 |
B016834 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
B016822 - CUVE CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/3/5/img/134835.jpg)
12 |
B016823 - FLOTTEUR CARBURATEUR More informationQuantity required : 1 |
||||||
|
13 |
B016829 - RESSORT More informationQuantity required : 1 |
||||||
|
14 |
1A001534 - GIGLEUR MAX More informationQuantity required : 1 |
