Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

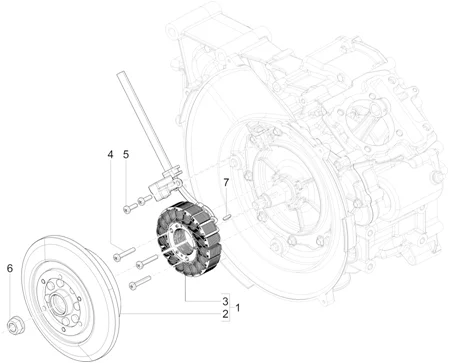

Moteur : 01.10 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.10.PNG)
1 |
58295R - VOLANT More informationQuantity required : 1 |
||||||
|
2 |
680070 - ROTOR More informationQuantity required : 1 |
||||||
|
2 |
58295R - VOLANT More informationQuantity required : 1 |
||||||
|
3 |
680075 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
3 |
58295R - VOLANT More informationQuantity required : 1 |
||||||
|
4 |
B018852 - VIS More informationQuantity required : 3 |
||||||
|
5 |
B018851 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
6 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
7 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
