Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

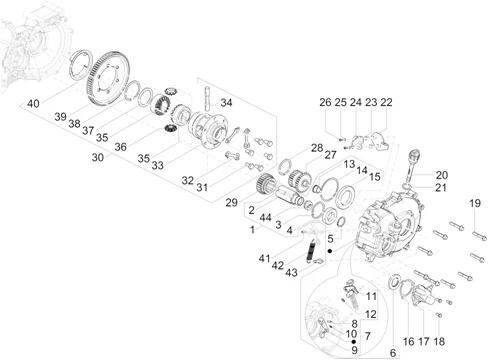

Moteur : 01.14 DIFFERENZIALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.14.PNG)
1 |
B016170 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
B018990 - ARBRE ENGREN. More informationQuantity required : 1 |
|||||||||
|
3 |
841005506 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/0/6/img/114906.JPG)
4 |
880305509R - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
5 |
842003000 - ANNEAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/4/3/img/115743.JPG)
6 |
888472671 - BAGUE ETANCHEITEE VM More informationQuantity required : 1 |
|||||||||
|
7 |
B0174924 - REMPLIR INVERTER DE COMMANDE. (C'ETAIT B More informationQuantity required : 1 |
|||||||||
|
8 |
017702 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
|||||||||
|
9 |
B017493 - DOIGT More informationQuantity required : 1 |
|||||||||
|
10 |
843000500 - ANNEAU More informationQuantity required : 1 |
|||||||||
|
11 |
120322013 - LEVIER INVESTER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/7/2/img/111872.JPG)
12 |
632191 - O-RING More informationQuantity required : 1 |
|||||||||
|
13 |
120302013 - BAGUE More informationQuantity required : 1 |
|||||||||
|
14 |
111353 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/4/7/img/119247.JPG)
15 |
007066 - ROULEMENT S00706600 More informationQuantity required : 1 |
|||||||||
|
16 |
165031013 - JOINT More informationQuantity required : 1 |
|||||||||
|
17 |
1A000817 - ENGR.COMP. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
18 |
B016777 - VIS More informationQuantity required : 3 |
|||||||||
|
18 |
434541 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623- More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/5/6/img/112856.jpg)
20 |
112898 - BOUCHON JAUGE HUILE More informationQuantity required : 1 |
|||||||||
|
21 |
127016015 - JOINT BOUCHON HUILE More informationQuantity required : 1 |
|||||||||
|
22 |
B017077 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
23 |
B017088 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/9/img/111479.JPG)
24 |
567498R - INTERRUPTEUR STOP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
25 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
26 |
015996 - VIS More informationQuantity required : 2 |
|||||||||
|
27 |
1A008666R - ENGRENAGE More informationQuantity required : 1 |
|||||||||
|
28 |
006450 - CIRCLIPS S00645000 More informationQuantity required : 1 |
|||||||||
|
29 |
1A008667R - ENGRENAGE More informationQuantity required : 1 |
|||||||||
|
30 |
B016171 - BOITE DIFF. More informationQuantity required : 1 |
|||||||||
|
31 |
B003163 - VIS More informationQuantity required : 6 |
|||||||||
|
32 |
B003155 - FIXATION More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/0/img/151140.JPG)
33 |
288730 - BOITE DIFFERENTIEL More informationQuantity required : 1 |
|||||||||
|
34 |
132129 - PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/5/3/img/121953.JPG)
35 |
1321364 - PLANETAIRE More informationQuantity required : 2 |
|||||||||
|
36 |
1651554 - PIGNON More informationQuantity required : 2 |
|||||||||
|
37 |
220575 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
38 |
132134 - BAGUE More informationQuantity required : 1 |
|||||||||
|
39 |
1A008665R - COURONNE More informationQuantity required : 1 |
|||||||||
|
40 |
132244 - FIXATION More informationQuantity required : 1 |
|||||||||
|
41 |
822051647 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
|||||||||
|
42 |
127111011 - RESSORT More informationQuantity required : 1 |
|||||||||
|
43 |
128307019 - VIS More informationQuantity required : 1 |
|||||||||
|
44 |
B018991 - COUVERCLE More informationQuantity required : 1 |
|||||||||
