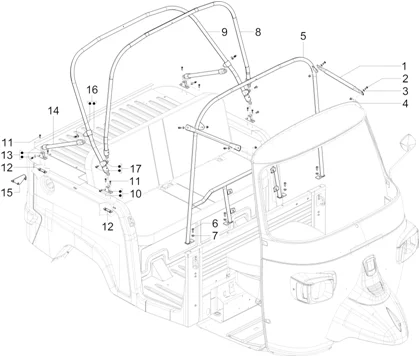

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015 PIAGGIO VU

Parties plastiques-carrosseries : 02.02 CHASSIS DE COUVERTURES
Chassis de couvertures
Search
658721 - VIS

2
P2R reference P2R reference 110823
Maker reference Maker reference 658721

658721 - VIS

More information

Quantity required : 4
658722 - RONDELLE

3
P2R reference P2R reference 109764
Maker reference Maker reference 658722

658722 - RONDELLE

More information

Quantity required : 4
658825 - ECROU

4
P2R reference P2R reference 112347
Maker reference Maker reference 658825

658825 - ECROU

More information

Quantity required : 4
658844 - VIS

6
P2R reference P2R reference 111532
Maker reference Maker reference 658844

658844 - VIS

More information

Quantity required : 4
658840 - RONDELLE

7
P2R reference P2R reference 109799
Maker reference Maker reference 658840

658840 - RONDELLE

More information

Quantity required : 4
658702 - SUPPORT FOURCHE 90°

10
P2R reference P2R reference 116803
Maker reference Maker reference 658702

658702 - SUPPORT FOURCHE 90°

More information

Quantity required : 2
658778 - VIS

11
P2R reference P2R reference 110657
Maker reference Maker reference 658778

658778 - VIS

More information

Quantity required : 8
658903 - SUPPORT

13
P2R reference P2R reference 117699
Maker reference Maker reference 658903

658903 - SUPPORT

More information

Quantity required : 2
