Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

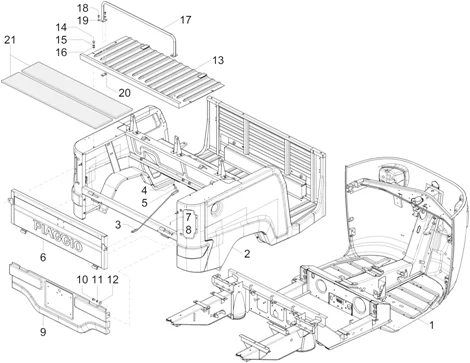

Parties plastiques-carrosseries : 02.01 CHASSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_02.01.PNG)
2 |
B024364 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
4 |
031088 - VIS S03108800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
B024402 - ABATTANT ARRIERE More informationQuantity required : 1 |
||||||
|
7 |
B005668 - GOUPILLE More informationQuantity required : 1 |
||||||
|
8 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
B025672CED - PARE-CHOCS ARRIÈRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
10 |
031116 - BOULON More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
11 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 5 |
||||||
|
12 |
116831 - RONDELLE More informationQuantity required : 5 |
||||||
|
13 |
B041746 - PORTE D'INSP. MOTEUR More informationQuantity required : 1 |
||||||
|
14 |
031116 - BOULON More informationQuantity required : 6 |
||||||
|
15 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
16 |
003058 - RONDELLE S00305800 More informationQuantity required : 6 |
||||||
|
18 |
658721 - VIS More informationQuantity required : 4 |
||||||
|
19 |
658722 - RONDELLE More informationQuantity required : 4 |
||||||
|
21 |
B006792 - ENCADREMENT More informationQuantity required : 2 |
