Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

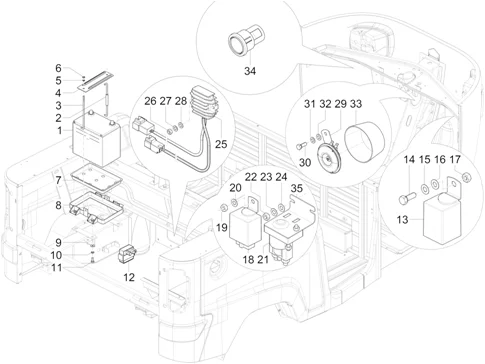

Installation électrique : 06.07 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_06.07.PNG)
1 |
B006544 - BATTERIE 35 AH More informationQuantity required : 1 |
||||||
|
2 |
632508 - TIRANT AR TL2 More informationQuantity required : 1 |
||||||
|
3 |
604954 - TAMPON More informationQuantity required : 1 |
||||||
|
4 |
B003978 - BANDEJA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
5 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
6 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 1 |
||||||
|
7 |
616649 - CUVE More informationQuantity required : 1 |
||||||
|
8 |
B003415 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
9 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
11 |
031119 - BOULON More informationQuantity required : 4 |
||||||
|
12 |
643140 - DISPOSITIF D'ALLUMAGE ÉLECTRONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/4/img/113354.jpg)
13 |
B023727R - RELAIS More informationQuantity required : 1 |
||||||
|
14 |
031057 - BOULON S03105700 More informationQuantity required : 1 |
||||||
|
16 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
17 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
|
18 |
680166 - RELAIS DEMARREUR More informationQuantity required : 1 |
||||||
|
19 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
|
20 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
587671R - RELAIS More informationQuantity required : 1 |
||||||
|
22 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
23 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
|
24 |
003055 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/3/1/img/120331.jpg)
25 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" PIAGGIO 200 APE 2013> -1D000671R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
26 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
27 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
28 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
|
29 |
B041000R - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
30 |
031116 - BOULON More informationQuantity required : 1 |
||||||
|
31 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
32 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
33 |
645041 - BOUCHON More informationQuantity required : 1 |
||||||
|
34 |
645153 - MOBILE CHARGER W/O LAMP More informationQuantity required : 1 |
||||||
|
35 |
568103 - SUPPORT More informationQuantity required : 1 |
All the exploded views of this vehicle
-
