Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

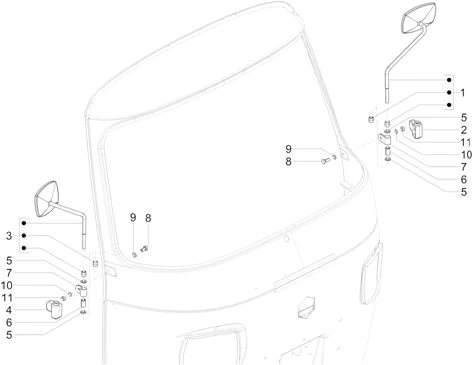

Parties plastiques-carrosseries : 02.19 RETROVISEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_02.19.PNG)
2 |
658482 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
658487 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
5 |
016626 - RONDELLE More informationQuantity required : 4 |
||||||
|
7 |
643613 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
8 |
031119 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
10 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
11 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
