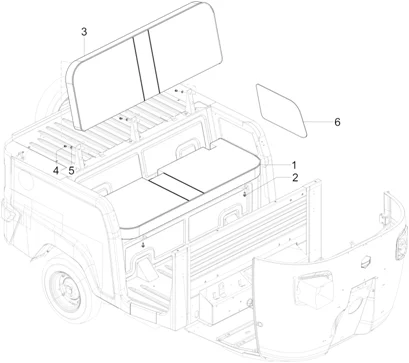

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015 PIAGGIO VU

Parties plastiques-carrosseries : 02.17 SIEGES ARRIERE
Sieges arriere
Search
658848 - VIS

4
P2R reference P2R reference 110844
Maker reference Maker reference 658848

658848 - VIS

More information

Quantity required : 3
658722 - RONDELLE

5
P2R reference P2R reference 109764
Maker reference Maker reference 658722

658722 - RONDELLE

More information

Quantity required : 3
B041118 - PANNEAU PORTE AVT. D.

6
P2R reference P2R reference 134800
Maker reference Maker reference B041118

B041118 - PANNEAU PORTE AVT. D.

More information

Quantity required : 1
B041217 - PANNEAU PORTE G.

6
P2R reference P2R reference 134807
Maker reference Maker reference B041217

B041217 - PANNEAU PORTE G.

More information

Quantity required : 1
