Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

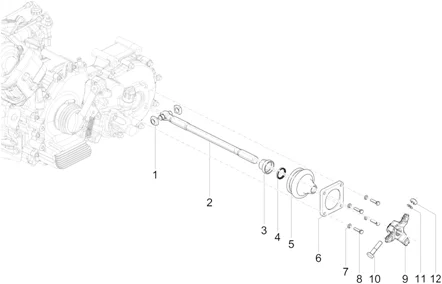

Roues : 04.06 TRANSMISSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_04.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/5/3/img/117553.JPG)
1 |
1128674 - TAMPON More informationQuantity required : 4 |
||||||
2 |
B023940 - TRANSMISSION More informationQuantity required : 2 |
||||||
|
3 |
113278 - EMBOUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/4/6/img/113246.jpg)
4 |
431044 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/8/img/113358.jpg)
5 |
876682 - COIFFE MANCHON CARDAN More informationQuantity required : 2 |
||||||
|
6 |
1113564 - COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
7 |
016406 - RONDELLE S01640600 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
8 |
031092 - VIS More informationQuantity required : 8 |
||||||
|
9 |
2681924 - ETOILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/0/img/114680.JPG)
10 |
B024614 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
11 |
016410 - ANNEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
12 |
231370 - ECROU More informationQuantity required : 2 |
