Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

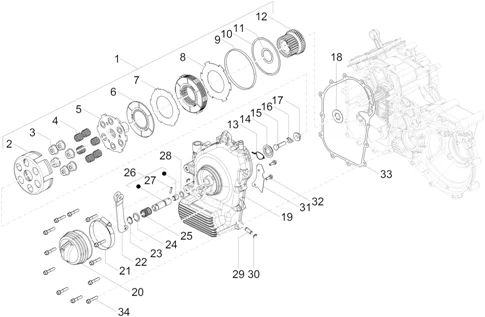

Moteur : 01.13 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.13.PNG)
1 |
CLUTCH KIT "PIAGGIO GENUINE PART" PIAGGIO APE CALESSINO -SP1A006004- More informationQuantity required : 1 |
||||||
|
2 |
127691011 - BOITE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
3 |
127757011 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/7/6/img/110576.jpg)
4 |
B023890 - RESSORT EMBRAYAGE More informationQuantity required : 6 |
||||||
|
5 |
1A006005 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
6 |
127530011 - DISQUE EMB More informationQuantity required : 5 |
||||||
|
7 |
127692015 - DISQUE More informationQuantity required : 4 |
||||||
|
8 |
127693019 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
9 |
1A005414R - BAGUE BUT.DISQ.EMBR. More informationQuantity required : 1 |
||||||
|
10 |
CIRCLIP FOR CLUTCH "PIAGGIO GENUINE PART" APE -127754019- More informationQuantity required : 1 |
||||||
|
11 |
127758015 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
1A008668R - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/4/1/img/110241.jpg)
13 |
129015015 - RESSORT D'ARRET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/0/6/img/113906.jpg)
14 |
129019011R - DISQUE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/0/img/110150.jpg)
15 |
B018678 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/5/8/img/110058.jpg)
16 |
129012013 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/6/4/img/110364.jpg)
17 |
129011019 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/5/3/img/110453.jpg)
18 |
B016160 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
SPB015863 - CLUTCH COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/4/8/img/111448.JPG)
20 |
127012019 - SOUFFLET More informationQuantity required : 1 |
||||||
|
21 |
120170018 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
127460010 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/2/9/img/111129.jpg)
23 |
842001600 - ANNEAU More informationQuantity required : 1 |
||||||
|
24 |
120164019 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
127185012 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/3/img/111633.jpg)
26 |
B018947 - ROD EMBRAYAGE More informationQuantity required : 1 |
||||||
|
27 |
822031942 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/6/9/img/110169.jpg)
28 |
B019220 - O-RING More informationQuantity required : 1 |
||||||
|
29 |
127013013 - PIVOT More informationQuantity required : 1 |
||||||
|
30 |
843000809 - ANNEAU More informationQuantity required : 2 |
||||||
|
31 |
B018358 - PLAQUE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
32 |
830061 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/0/2/img/112702.JPG)
33 |
B018549 - CARTER EMBRAYAGE JOINT More informationQuantity required : 1 |
||||||
|
34 |
B018853 - VIS More informationQuantity required : 12 |
