Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

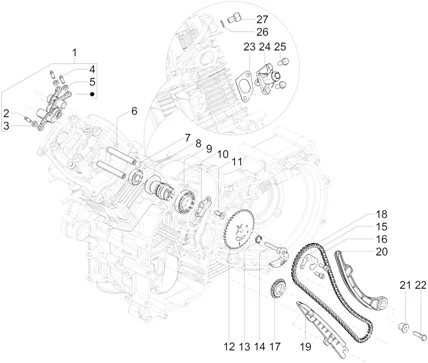

Moteur : 01.06 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.06.PNG)
1 |
83062R - BILANCIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/5/img/110145.JPG)
2 |
B017323 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/3/4/img/109934.JPG)
3 |
B017431 - ROCKER ECROU DE REGLAGE More informationQuantity required : 1 |
|||||||||
|
4 |
B017323 - VIS More informationQuantity required : 2 |
|||||||||
|
5 |
B017431 - ROCKER ECROU DE REGLAGE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/7/img/110337.JPG)
6 |
B017113 - AXE DU CULBUTEURS More informationQuantity required : 2 |
|||||||||
|
7 |
83040R - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
8 |
B017746 - ARBRE A CAMES More informationQuantity required : 1 |
|||||||||
|
9 |
83041R - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
10 |
CAMSHAFT RETAINING PLATE "PIAGGIO GENUINE PART" APE CALESSINO 2013>2018 -B014760- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/5/img/109875.jpg)
11 |
B018946 - VIS More informationQuantity required : 1 |
|||||||||
|
12 |
1A002358 - COURONNE DISTRIBUTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/1/8/img/110118.JPG)
13 |
B015483 - RESSORT More informationQuantity required : 1 |
|||||||||
|
14 |
B014233 - MASSELOTTE More informationQuantity required : 1 |
|||||||||
|
15 |
B015043 - FICHE METAL CONTEN.MASSA DECOMPRESSEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/0/7/img/159207.JPG)
15 |
1A008397 - TOLE More informationQuantity required : 1 |
|||||||||
|
17 |
B015017 - PIGNON More informationQuantity required : 1 |
|||||||||
|
18 |
1A001114R - CHAINE More informationQuantity required : 1 |
|||||||||
|
19 |
B014997 - ANCRAGE More informationQuantity required : 1 |
|||||||||
|
20 |
1A004875 - TEND. DE CHAINE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/3/img/66693.jpg)
21 |
SPACER- -485868- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
22 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
23 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.JPG)
24 |
82650R - TENDEUR More informationQuantity required : 1 |
|||||||||
|
24 |
82650R - TENDEUR More informationQuantity required : 1 |
|||||||||
|
25 |
434541 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
25 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
26 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
27 |
269755 - VIS More informationQuantity required : 1 |
|||||||||
