Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

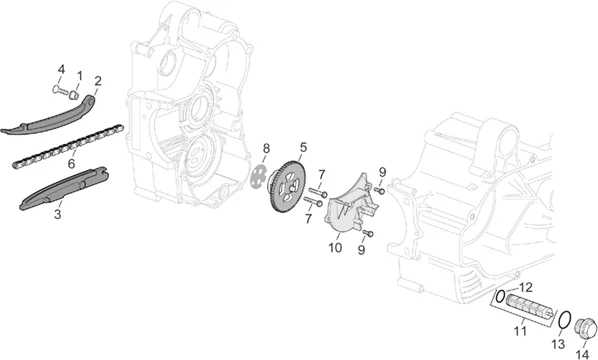

Moteur : 29.47 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_29.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/5/img/68565.jpg)
1 |
825737 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/2/img/68712.jpg)
2 |
827886 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/9/img/68709.jpg)
3 |
TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -827882- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/8/img/72728.jpg)
4 |
SCREW - M6X16 FOR BALANCE SHAFT OR OIL PUMP DRIVE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016797- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/1/img/70601.jpg)
5 |
COMPLETE OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/3/img/68713.jpg)
6 |
TIMING CHAIN "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 400-500 CC -827889- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
7 |
433477 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/1/img/69551.jpg)
8 |
OIL PUMP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -847962- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
9 |
830061 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/2/img/68892.jpg)
10 |
OIL PUMP COVER "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 400-500CC -83064- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
12 |
OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
13 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536- More informationQuantity required : 1 |
