Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

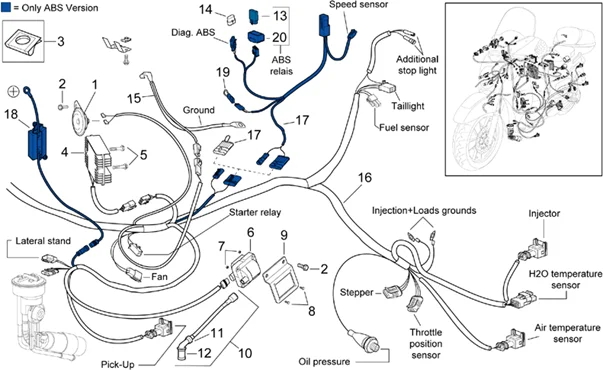

Chassis : 28.33 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.33.PNG)
1 |
AP8124598 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
2 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/3/img/67823.jpg)
4 |
VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
5 |
AP8152282 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/7/img/67207.jpg)
6 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9,GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC -58120R- More informationQuantity required : 1 |
||||||
|
8 |
AP8121577 - VIS More informationQuantity required : 4 |
||||||
|
9 |
AP8154059 - SUPPORTO BOBINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
10 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
11 |
SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
12 |
436919 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
13 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 1 |
||||||
|
14 |
AP8104807 - TAPPO CONNETTORE More informationQuantity required : 1 |
||||||
|
15 |
AP8124964 - CABLAGE MASSE-BATTERIE; More informationQuantity required : 1 |
||||||
|
16 |
AP8127528 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
16 |
AP8124962 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
17 |
AP8127591 - PONTE PER CABLAGGIO More informationQuantity required : 1 |
||||||
|
17 |
AP8127566 - CABLAGGIO ABS More informationQuantity required : 1 |
||||||
|
18 |
AP8127567 - CAVO FUSIBILE ABS More informationQuantity required : 1 |
||||||
|
19 |
AP8127604 - PONTE PER CABLAGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
20 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 1 |
