Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

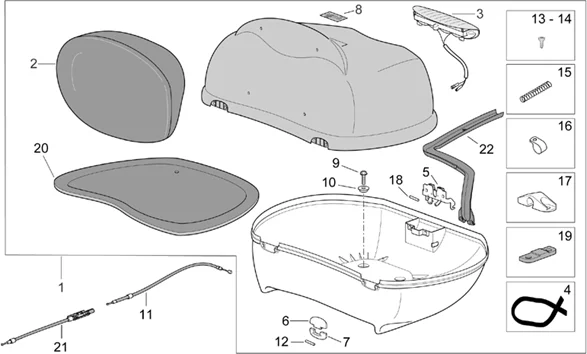

Chassis : 28.15 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.15.PNG)
1 |
AP8178225 - BAULETTO V.SILVER MIRROR More informationQuantity required : 1 |
||||||
|
1 |
AP8178226 - BAULETTO V.BLU MAIN More informationQuantity required : 1 |
||||||
|
1 |
AP8178227 - BAULETTO V.BEIGE MOU More informationQuantity required : 1 |
||||||
|
1 |
AP8178228 - BAULETTO V.ROSSO DEVIL More informationQuantity required : 1 |
||||||
|
1 |
AP8178666 - BAULE V.NERO SHADOW More informationQuantity required : 1 |
||||||
|
1 |
AP8178667 - BAULE V.GRIGIO OSLO More informationQuantity required : 1 |
||||||
|
1 |
AP8178669 - BAULE V.GRIGIO OSLO More informationQuantity required : 1 |
||||||
|
2 |
AP8129377 - COUSSIN DOSSIER; More informationQuantity required : 1 |
||||||
|
3 |
AP8127356 - PHARE STOP; More informationQuantity required : 1 |
||||||
|
4 |
AP8144245 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
SADDLE LOCK "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250 2003>2012, SR 50 2004>2014 -AP8102947- More informationQuantity required : 1 |
||||||
|
6 |
AP8168635 - CHARNIERE SUP., NOIRE; More informationQuantity required : 1 |
||||||
|
6 |
AP8168636 - CHARNIERE SUP., GRIS; More informationQuantity required : 1 |
||||||
|
7 |
AP8168637 - CHARNIERE INFERIEURE, NOIRE; More informationQuantity required : 1 |
||||||
|
7 |
AP8168638 - CHARNIERE INFERIEURE, GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
9 |
AP8152287 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
10 |
AP8121151 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
|
11 |
AP8114454 - CABLE SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 19 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
14 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
|
15 |
AP8121023 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/4/img/71164.jpg)
16 |
AP8101890 - COLLIER More informationQuantity required : 3 |
||||||
|
17 |
AP8221335 - CAVAL SERRUR COFFRET More informationQuantity required : 1 |
||||||
|
18 |
AP8121605 - PIVOT; More informationQuantity required : 1 |
||||||
|
19 |
AP8134799 - PLAQUETTE; More informationQuantity required : 1 |
||||||
|
20 |
AP8158989 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
21 |
AP8114436 - CABLE OUVERTURE COFFRE; More informationQuantity required : 1 |
||||||
|
22 |
AP8158971 - SUPPORTO CAVI ELETTRICI More informationQuantity required : 1 |
