Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

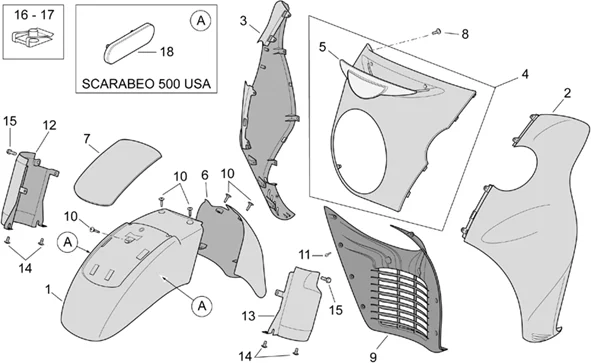

Chassis : 28.08 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.08.PNG)
1 |
AP8126867 - GARDE-BOUE AV.SUP.GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156145 - PARAFANGO ANT.SUP.V.BIANCO CAM More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156143 - PARAFANGO ANT.SUP.V.BIANCO CAM More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156137 - PARAFANGO ANT.SUP.V.BLU MAIN More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156125 - PARAFANGO ANT.SUP.V.GRIGIO DIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156109 - PARAFANGO ANT.SUP.V.NERO DARK. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156047 - GARDE-BOUE AV.SUP.BLEU; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156049 - GARDE-BOUE AV.SUP.BEIGE; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156051 - GARDE-BOUE AV.SUP.NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156086 - PARAFANGO ANT.SUP.V.GRIGIO P. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8156108 - PARAFANGO ANT.SUP.V.BEIGE MOU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168568 - TABLIER AVANT GOCHE, BEIGE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178336 - SEMISCUDO ANT.SX V.GRIGIO DIA. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178589 - SEMISCUDO ANT.SX V.BIANCO CAM. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178732 - SEMISCUDO ANT.SX V.GRIGIO DIA. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168551 - TABLIER AVANT GOCHE, BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178331 - SEMISCUDO ANTER.SX V.BEIGE MOU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149202 - TABLIER AVANT GOCHE, GRIS More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178275 - SEMISCUDO ANTERIORE SX V.GR.P. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168578 - TABLIER AVANT GOCHE, NOIR; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178731 - SEMISCUDO ANT.DX V.GRIGIO DIA. More informationQuantity required : 1 |
|||||||||
|
3 |
AP8168577 - TABLIER AVANT DROIT, NOIR; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178588 - SEMISCUDO ANT.DX V.BIANCO CAM. More informationQuantity required : 1 |
|||||||||
|
3 |
AP8149253 - TABLIER AVANT DROIT, GRIS More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178330 - SEMISCUDO ANTER.DX V.BEIGE MOU More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178335 - SEMISCUDO ANT.DX V.GRIGIO DIA. More informationQuantity required : 1 |
|||||||||
|
3 |
AP8168567 - TABLIER AVANT DROIT, BEIGE; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8168550 - TABLIER AVANT DROIT, BLEU; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178274 - SEMISCUDO ANTERIORE DX V.GRI.P More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178587 - COFANO V.GRIGIO O.CON FREGIO More informationQuantity required : 1 |
|||||||||
|
4 |
AP8168549 - COFFRE, GRIS; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8168576 - COFFRE, ROUGE; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178333 - COFANO V.NERO SHAD.CON FREGIO More informationQuantity required : 1 |
|||||||||
|
5 |
AP8168566 - FREGIO COFANO ANT.CROMATO More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156144 - PARAFANGO ANT.INF.V.BIANCO CAM More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156126 - PARAFANGO ANT.INF.V.GRIGIO DIA More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156052 - GARDE-BOUE AV.INF.NOIR; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156050 - GARDE-BOUE AV.INF.BEIGE; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156048 - GARDE-BOUE AV.INF.BLEU; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8126882 - GARDE-BOUE AV.INF.GRIS; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8168579 - FERMET. GARD-B AV, ROUGE; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8168552 - FERMET. GARD-B AV, GRIS; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8178590 - CHIUSURA PARAF.ANT.V.GRIGIO O. More informationQuantity required : 1 |
|||||||||
|
7 |
AP8178337 - CHIUSURA PARAF.ANT.V.NERO SHAD More informationQuantity required : 1 |
|||||||||
|
7 |
AP8168091 - FERMET. GARD-B AV, SILVER; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
|||||||||
|
9 |
AP8149203 - CONVOYEUR, NOIR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
11 |
AP8150493 - VIS More informationQuantity required : 8 |
|||||||||
|
12 |
AP8126868 - CACHE-TIGE GAUCHE; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8149512 - CACHE-TIGE DROITE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
14 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
15 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
18 |
AP8124719 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
|||||||||
