Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

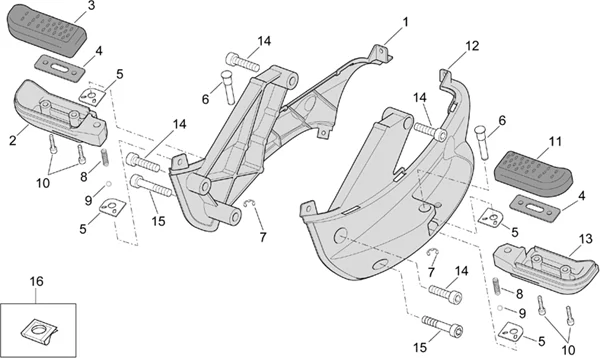

Chassis : 28.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.02.PNG)
1 |
AP8146742 - SUPPORT REPOSE-PIEDS DTE; More informationQuantity required : 1 |
||||||
|
2 |
AP8146743 - REP-PIEDS PASS.DTE; More informationQuantity required : 1 |
||||||
|
3 |
AP8144514 - CAOUTCHOUC REP-PIEDS PASS.DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/2/img/71712.jpg)
4 |
AP8134857 - PLAQUETTE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
5 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
|
6 |
AP8121579 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
7 |
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
8 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
9 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
10 |
AP8150252 - VIS More informationQuantity required : 4 |
||||||
|
11 |
AP8144515 - CAOUTCHOUC REP-PIEDS PASS.GCHE More informationQuantity required : 1 |
||||||
|
12 |
AP8146744 - SUPPORT R-P. G; More informationQuantity required : 1 |
||||||
|
13 |
AP8146745 - REP-P. PASS.GCHE; More informationQuantity required : 1 |
||||||
|
14 |
AP8150048 - VIS More informationQuantity required : 4 |
||||||
|
15 |
AP8150086 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 3 |
